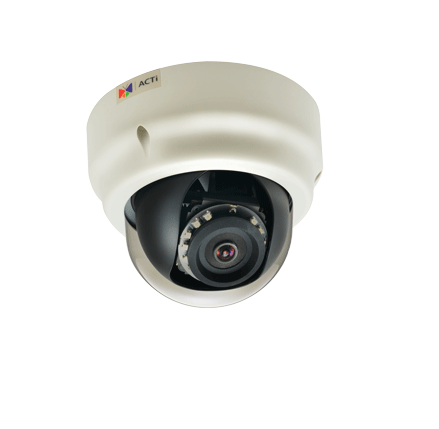

B53

Description

Device
Device Type Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3”
Day / Night Yes
Superior Low Light Sensitvity No
Minimum Illumination Color: 0.1 lux at F2.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100nm
IR LED Adaptive IR LED (Adjustable IR Exposure Compensation) x 10 (850nm)
IR Working Distance 40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f1.9 mm / F2.8
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 129.56° (overview area), 79° (high detail area)
Viewing Angle Adjustment Pan: 0° – 350°; Tilt: 17° – 163° ; Rotate: 0- 350°
• Video
Compression H.264 HP, MJPEG
Max. Frame Rate vs. Resolution 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Superior WDR (110 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Compression 8kHz, Mono, PCM, 16 bit encoding, G.711
Audio-In Terminal block
Audio-Out Terminal block
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
• Interface
Digital Input 1, Terminal block
Digital Output 1, Terminal block
Local Storage MicroSDHC/MicroSDXC memory card slot (card not included)
• General
Power Source / Consumption PoE Class 2 (IEEE802.3af) / 6.49 W
DC 12V (adapter not included) / 4.68 W
Weight 508 g (1.120 Ib)
Dimensions (Ø x H) 146 mm x 113.9 mm ( 5.7” x 4.5”)
Environmental Casing Vandal resistant (IK09), Transparent dome cover
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
Starting Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
