Description
Includes
- 1 x AWK-6222 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 2 x dual-band omni-directional antennas (2/5 dBi, N-type male, 2.4/5 GHz)
- 1 x wall mounting kit (includes 2 supports)
- 1 x field-installable power plug
- 1 x field-installable RJ45 plug
- 1 x metal cap to cover M12-female DI/O connector
- 2 x metal caps to cover RJ45 connectors
- 2 x metal caps to cover N-type connectors
Specs:
Operating Channels (central frequency)
2.412 to 2.462 GHz (11 channels)
5.18 to 5.24 GHz (4 channels)
Security
SSID broadcast enable/disable
Firewall for MAC/IP/Protocol/Port-base filtering
64-bit and 128-bit WEP encryption, WPA/WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
TX Transmit Power
802.11b: Typ. 23±1.5 dBm @ 1 to 11 Mbps
802.11g: Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 to 48 Mbps, Typ. 15±1.5 dBm @ 54 Mbps
802.11a: Typ. 20±1.5 dBm @ 6 to 24 Mbps, Typ. 19±1.5 dBm @ 36 Mbps, Typ. 18±1.5 dBm @ 48 Mbps, Typ. 17±1.5 dBm @ 54 Mbps
LAN Port
2 10/100BaseT(X) ports, auto negotiation speed (waterproof RJ45-type)
Overview:

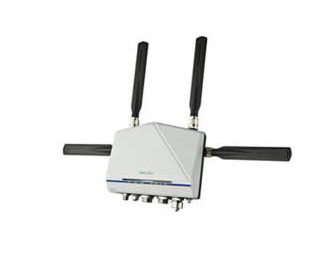

The AWK-6222 is an outdoor dual-RF wireless AP/bridge/client that provides a flexible solution for industrial applications in critical environments. It is rated for operation at temperatures ranging from -40° to 75°C and has a dust-tight, weatherproof design (IP68-rated), so you can extend existing wired networks to outdoor locations.
With two independent RF modules, the AWK-6222 supports a greater variety of wireless configurations and applications. It can also increase the reliability of entire wireless network by enabling redundant wireless connections. The AWK-6222 also has two redundant DC power inputs to increase the reliability of the power supply, and can be powered via PoE.
