AWK-5222-US-T IEEE 802.11a/b/g dual-RF AP/Bridge/Client, US band

Please note: 7 to 9 weeks for delivery, call for details

AWK-5222-US-T IEEE 802.11a/b/g dual-RF AP/Bridge/Client, US band, -40 to 75°C operating temperature

Highlights

  • Dual-RF design for redundant wireless communication
  • IEEE 802.11a/b/g compliant
  • Redundant power inputs and PoE
  • Higher security with WEP, WPA, WPA2, 802.11X, and powerful filters
  • Turbo Roaming for seamless wireless connections
Categories: , ,

Description

Specs:

Standards
IEEE 802.11a/g/b for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3u for 10/100BaseT(X)
IEEE 802.3af for Power-over-Ethernet
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP

Operating Channels (central frequency)
2.412 to 2.462 GHz (11 channels)
5.18 to 5.24 GHz (4 channels)

Security
SSID broadcast enable/disable
Firewall for MAC/IP/Protocol/Port-base filtering
64-bit and 128-bit WEP encryption, WPA /WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)

Transmission Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Default Antenna
2 dBi, dual-band omni-directional antenna, RP-SMA (male)

Connector for External Antenna
RP-SMA (female)

LAN Port
10/100BaseT(X) auto negotiation speed (RJ45-type)

Console Port
RS-232 (RJ45-type)

Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Input Voltage
12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)

Connector
10-pin removable terminal block

Overview:

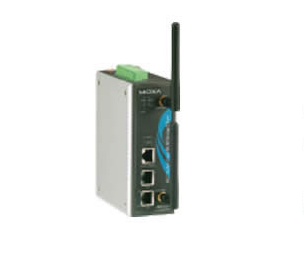

The AWK-5222 dual-RF wireless AP/Bridge/Client provides a flexible and highly reliable solution for your industrial wireless networks. The AWK-5222 is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for extended temperature models, and it is built rugged enough for industrial applications. With two independent RF modules, the AWK-5222 supports a greater variety of wireless configurations and applications, and the redundant wireless connections increase the reliability of the entire wireless network. The AWK-5222’s two DC power inputs make the power supply more reliable, and it can also be powered via PoE for easier deployment.

Redundancy to Increase System Reliability

  • Dual DC power inputs and PoE
  • Redundant dual-RF design for rapid fail-over
  • Immunity against disconnection caused by radio interference
  • Loading balance of wireless communication

Advanced Security

  • 64-bit and 128-bit WEP (Wired Equivalent Privacy)
  • Enable/disable SSID broadcasts
  • Power filters for access control
  • IEEE 802.1X/RADIUS supported
  • WPA/WPA2/802.11i supported
