Description
Includes
- 1 x AWK-3121 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 2 x dual-band omni-directional antennas (2 dBi, RP-SMA, 2.4/5 GHz)
- 1 x cable holder with one screw
- 3 x protective caps
- 1 x DIN-rail mounting kit
Specs:
Standards
IEEE 802.11a/g/b for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3u for 10/100BaseT(X)
IEEE 802.3af for Power-over-Ethernet
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
Security
SSID broadcast enable/disable
Firewall for MAC/IP/Protocol/Port-base filtering
64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission Rates
802.11b 1, 2, 5.5, 11 Mbps
802.11a/g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
General Protocols
Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, RTP
AP-only Protocols
ARP, BOOTP, DHCP, dynamic VLAN-Tags for 802.1X-Clients, STP/RSTP (IEEE 802.1D/w)
Default Antenna
2 dBi dual-band omni-directional antenna, RP-SMA (male)
Connector
RP-SMA (female)
LAN Port
RJ45 Port 10/100BaseT(X) auto negotiation speed
Console Port
Console for External Antenna RS-232 (RJ45-type)
Operating Temperature
Standard Models 0 to 60°C (32 to 140°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)
Input Voltage
12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)
Connector
Connection 10-pin removable terminal block
Overview:

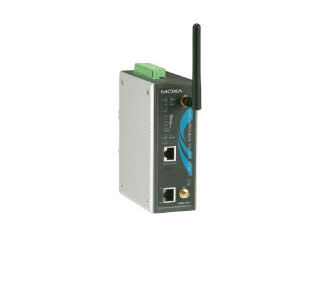

Are your industrial applications hard to wire, or are your wiring costs out of control? Are you already using mobile equipment that connects over an IP network? If so, then what you need is the AWK-3121 Access-Point/Bridge/Client.
The AWK-3121 is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for wide temperature models, and is rugged enough for any harsh industrial environment. Installation is easy, with either DIN-Rail mounting or distribution boxes.
The DIN-Rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3121 a convenient yet reliable solution for any industrial wireless application.
