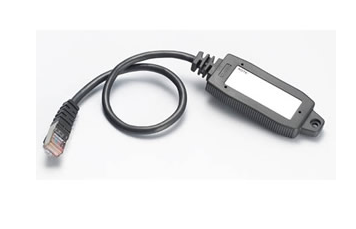

Automatic Backup Configurator ABC-01

Features

  • RS-232 RJ45 console port connection
  • Store the complete configuration of one switch
  • Reduce system downtime, without an additional power input
  • Load the system configuration automatically after system reboot
  • Manually load and save the system configuration through the web console
  • Plug-n-Play system backup and restoration
  • Front label for writing identification information
  • Compact, rugged, reliable design
  • Supports Moxa’s managed Ethernet switches and wireless APs/Bridges/Clients



Introduction

The ABC-01 configuration backup and restoration tool can be used to save and load the configuration of Moxa’s managed Ethernet switches and AWK series wireless APs/Bridges/Clients through the RS-232 console port. This simple yet powerful tool makes it much easier to back up a device’s system parameters, or even replace an existing device with a new one. With the ABC-01, you can quickly re-install a substitute device (of the same model) or recover the entire system configuration, including IP address, if the device fails.

Categories: , ,

Description

• Basic Operation
Connector RS-232 RJ45/M12 port
Configuration Use the web console of Moxa’s managed switches and wireless APs/Bridges/Clients
• Power Requirements
Input Voltage 3 to 5 VDC (through the RS-232 port’s RTS signal)
• Physical Characteristics
Housing PVC molding, IP40 protection
Dimensions 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
Weight ABC-01: 50 g ABC-01-M12: 60 g
Mounting Method M4 screws (< 4 mm)
Cable Length 35 cm (including connector)
• Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity 5 to 95 % (non-condensing)
• Standards and Certifications
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
