Description
• Device

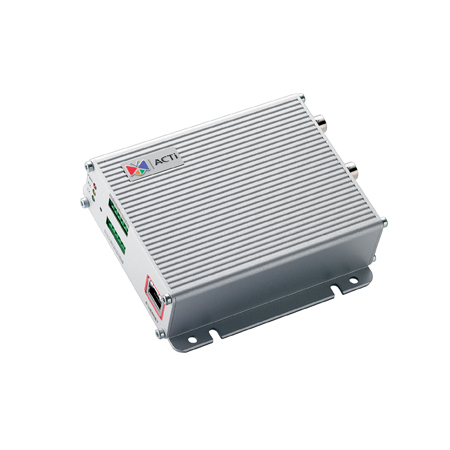

Device Type Video Encoder
Number of Channels 1
• PTZ
Protocol Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
• Video
Compression MPEG-4 SP, MJPEG
Maximum Frame Rate vs.
Resolution
30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL)
30 fps at 640 x 480 (VGA, NTSC); 25 fps at 640 x 480 (VGA, PAL)
30 fps at 352 x 240 (CIF, NTSC); 25 fps at 352 x 288 (CIF, PAL)
30 fps at 160 x 112 (QCIF, NTSC); 25 fps at 176 x 144 (QCIF, PAL)
Multi-Streaming Multiple streams based on single configuration
Bit Rate 28 Kbps – 3 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Brightness; Saturation; Contrast
Privacy Mask 1 configurable region
Text Overlay User defined text on video
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding
Audio-In 3.5 mm Phone Jack
Audio-Out 3.5 mm Phone Jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response
Notify control center; Go to PTZ preset point or preset tour; Change camera settings;
Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server;
Activate external device through digital output
• Interface
Analog Video Input 1, CVBS, 1.0Vp-p with 75Ω BNC connector
Analog Video Output 1, CVBS, 1.0Vp-p with 75Ω BNC connector
Digital Input 2, terminal block
Digital Output 2, terminal block
Serial Port RS-485, RS-422, RS-232, terminal block
• General
Power Source /
Consumption DC 12V ±10% / 3.8 W
Weight 350 g (0.77 lb)

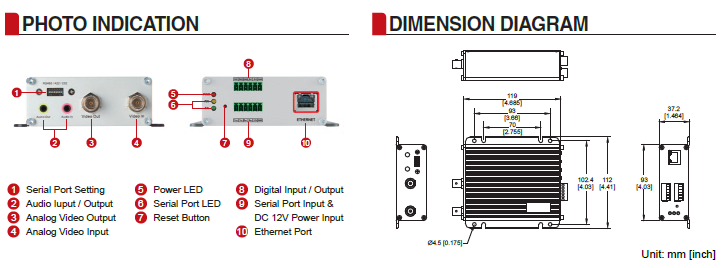

Dimensions (W x H x D) 112 mm x 37.2 mm x 119 mm (4.41″ x 1.46″ x 4.68″)
Operating Temperature ACD-2100: 0 °C ~ 50 °C (32 °F ~ 122 °F); ACD-2100T: -30 °C ~ 70 °C (-22 °F ~ 158 °F)
Operating Humidity 10% ~ 85% RH
Approvals Video Encoder: CE, FCC; Adapter: CE, TUV-GS, UL, RCM, CCC
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
